pAmCyan1-N1载体基本信息

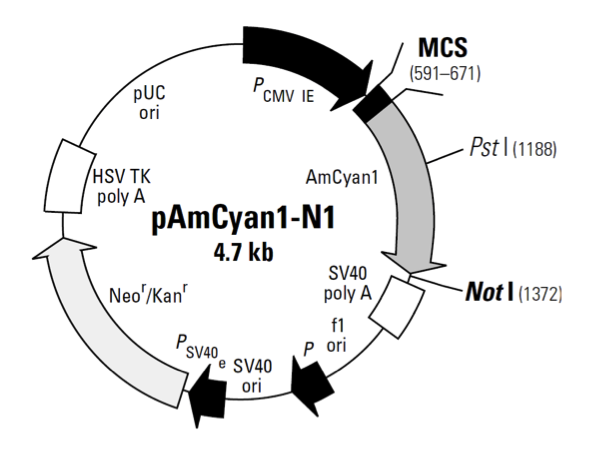

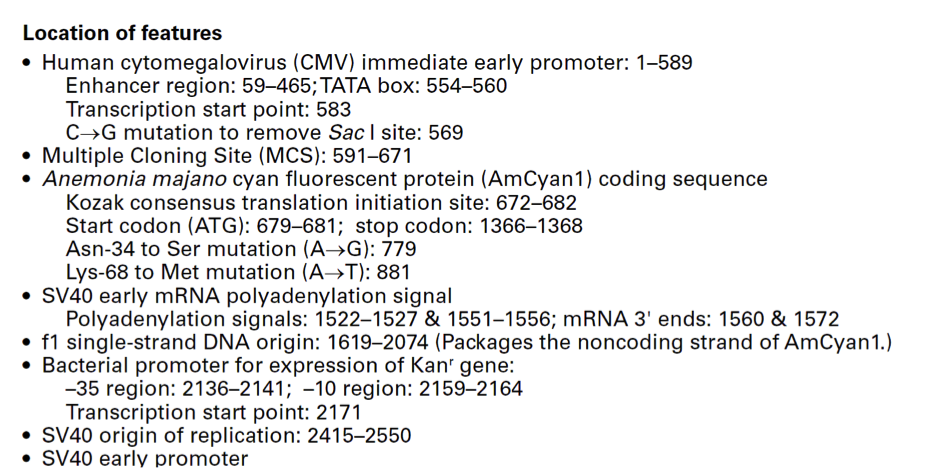

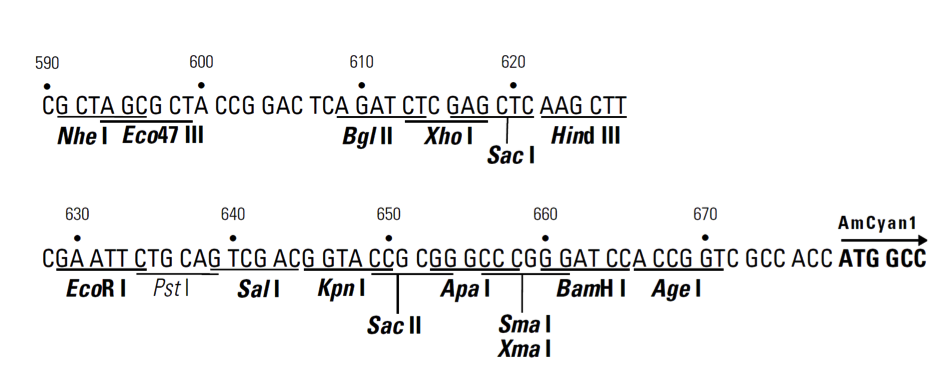

pAmCyan1-N1载体质粒图谱和多克隆位点信息

pAmCyan1-N1载体描述

pAmCyan1-N1 encodes a human codon-optimized variant of wild-type Anemonia majano cyan fluorescent protein, AmCyan1 (1). The AmCyan1 coding sequence contains a series of silent base-pair changes, which correspond to human codon-usage preferences, for optimal expression in mammalian cells (2). Additionally, an upstream sequence—located just 5' to the AmCyan1 start codon—has been converted to a Kozak consensus translation initiation site(3) to further increase the translation efficiency in eukaryotic cells. Two amino acid substitutions (Asn-34 to Ser; Lys-68 to Met) have been made to enhance the emission characteristics of AmCyan1 (excitation maximum = 458 nm; emission maximum = 489 nm).

The multiple cloning site (MCS) in pAmCyan1-N1 is positioned between the immediate-early promoter of CMV (PCMV IE) and the AmCyan1 coding sequence. Thus, genes cloned into the MCS will be expressed as fusions to the N-terminus of AmCyan1 if they are in the same reading frame as AmCyan1 and there are no intervening stop codons. The SV40 polyadenylation signals (SV40 polyA) downstream of the AmCyan1 gene direct proper processing of the 3'end of AmCyan1 mRNA.

The vector backbone contains an SV40 origin (SV40 ori) for replication in mammalian cells that express the SV40 T antigen, a pUC origin of replication (pUC ori) for propagation in E. coli, and an f1 origin (f1 ori) for single-stranded DNA production. In addition, a neomycin-resistance cassette— consisting of the SV40 early promoter (PSV40e), the neomycin/kanamycin resistance gene of Tn5 (Neor/Kanr), and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK poly A) gene—allows stably transfected eukaryotic cells to be selected using G418 (4). A bacterial promoter (P) upstream of this cassette drives expression of the Neor/Kanr gene in E. coli host cells, which can be selected with kanamycin.

Fusions to the N terminus of AmCyan1 retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo . The target gene should be cloned into pAmCyan1-N1 so that it is in frame with the AmCyan1 coding sequence, with no intervening, in-frame stop codons. The inserted gene should include the initiating ATG codon. The recombinant pAmCyan1-N1 vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (available from Clontech; Cat. Nos. 631307 & 631308). We recommend selecting mammalian cell cultures in 500–1,300 μg/ml G418, depending on the cell line. Be sure to establish a kill curve for each cell line and each lot of G418 to determine the optimal selection concentration. Unmodified (i.e., non-recombinant) pAmCyan1-N1 can also be used simply to express AmCyan1 in a cell line of interest (e.g., as a transfection marker).

Propagation in E. coli

 Suitable host strains: DH5α, HB101 and other general purpose strains. Single-stranded DNA production requires

a host containing an F plasmid such as JM101 or XL1-Blue.

 Selectable marker: plasmid confers resistance to kanamycin (50 μg/ml) to E. coli hosts.

 E. coli replication origin: pUC

 Copy number: ~500

 Plasmid incompatibility group: pMB1/Col E1

pAmCyan1-N1载体序列

ORIGIN

    1 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG

   61 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT

  121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA

  181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC

  241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA

  301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC

  361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG

  421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG

  481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT

  541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA

  601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG

  661 GATCCACCGG TCGCCACCAT GGCCCTGTCC AACAAGTTCA TCGGCGACGA CATGAAGATG

  721 ACCTACCACA TGGACGGCTG CGTGAACGGC CACTACTTCA CCGTGAAGGG CGAGGGCAGC

  781 GGCAAGCCCT ACGAGGGCAC CCAGACCTCC ACCTTCAAGG TGACCATGGC CAACGGCGGC

  841 CCCCTGGCCT TCTCCTTCGA CATCCTGTCC ACCGTGTTCA TGTACGGCAA CCGCTGCTTC

  901 ACCGCCTACC CCACCAGCAT GCCCGACTAC TTCAAGCAGG CCTTCCCCGA CGGCATGTCC

  961 TACGAGAGAA CCTTCACCTA CGAGGACGGC GGCGTGGCCA CCGCCAGCTG GGAGATCAGC

 1021 CTGAAGGGCA ACTGCTTCGA GCACAAGTCC ACCTTCCACG GCGTGAACTT CCCCGCCGAC

 1081 GGCCCCGTGA TGGCCAAGAA GACCACCGGC TGGGACCCCT CCTTCGAGAA GATGACCGTG

 1141 TGCGACGGCA TCTTGAAGGG CGACGTGACC GCCTTCCTGA TGCTGCAGGG CGGCGGCAAC

 1201 TACAGATGCC AGTTCCACAC CTCCTACAAG ACCAAGAAGC CCGTGACCAT GCCCCCCAAC

 1261 CACGTGGTGG AGCACCGCAT CGCCAGAACC GACCTGGACA AGGGCGGCAA CAGCGTGCAG

 1321 CTGACCGAGC ACGCCGTGGC CCACATCACC TCCGTGGTGC CCTTCTGAAG CGGCCGCGAC

 1381 TCTAGATCAT AATCAGCCAT ACCACATTTG TAGAGGTTTT ACTTGCTTTA AAAAACCTCC

 1441 CACACCTCCC CCTGAACCTG AAACATAAAA TGAATGCAAT TGTTGTTGTT AACTTGTTTA

 1501 TTGCAGCTTA TAATGGTTAC AAATAAAGCA ATAGCATCAC AAATTTCACA AATAAAGCAT

 1561 TTTTTTCACT GCATTCTAGT TGTGGTTTGT CCAAACTCAT CAATGTATCT TAAGGCGTAA

 1621 ATTGTAAGCG TTAATATTTT GTTAAAATTC GCGTTAAATT TTTGTTAAAT CAGCTCATTT

 1681 TTTAACCAAT AGGCCGAAAT CGGCAAAATC CCTTATAAAT CAAAAGAATA GACCGAGATA

 1741 GGGTTGAGTG TTGTTCCAGT TTGGAACAAG AGTCCACTAT TAAAGAACGT GGACTCCAAC

 1801 GTCAAAGGGC GAAAAACCGT CTATCAGGGC GATGGCCCAC TACGTGAACC ATCACCCTAA

 1861 TCAAGTTTTT TGGGGTCGAG GTGCCGTAAA GCACTAAATC GGAACCCTAA AGGGAGCCCC

 1921 CGATTTAGAG CTTGACGGGG AAAGCCGGCG AACGTGGCGA GAAAGGAAGG GAAGAAAGCG

 1981 AAAGGAGCGG GCGCTAGGGC GCTGGCAAGT GTAGCGGTCA CGCTGCGCGT AACCACCACA

 2041 CCCGCCGCGC TTAATGCGCC GCTACAGGGC GCGTCAGGTG GCACTTTTCG GGGAAATGTG

 2101 CGCGGAACCC CTATTTGTTT ATTTTTCTAA ATACATTCAA ATATGTATCC GCTCATGAGA

 2161 CAATAACCCT GATAAATGCT TCAATAATAT TGAAAAAGGA AGAGTCCTGA GGCGGAAAGA

 2221 ACCAGCTGTG GAATGTGTGT CAGTTAGGGT GTGGAAAGTC CCCAGGCTCC CCAGCAGGCA

 2281 GAAGTATGCA AAGCATGCAT CTCAATTAGT CAGCAACCAG GTGTGGAAAG TCCCCAGGCT

 2341 CCCCAGCAGG CAGAAGTATG CAAAGCATGC ATCTCAATTA GTCAGCAACC ATAGTCCCGC

 2401 CCCTAACTCC GCCCATCCCG CCCCTAACTC CGCCCAGTTC CGCCCATTCT CCGCCCCATG

 2461 GCTGACTAAT TTTTTTTATT TATGCAGAGG CCGAGGCCGC CTCGGCCTCT GAGCTATTCC

 2521 AGAAGTAGTG AGGAGGCTTT TTTGGAGGCC TAGGCTTTTG CAAAGATCGA TCAAGAGACA

 2581 GGATGAGGAT CGTTTCGCAT GATTGAACAA GATGGATTGC ACGCAGGTTC TCCGGCCGCT

 2641 TGGGTGGAGA GGCTATTCGG CTATGACTGG GCACAACAGA CAATCGGCTG CTCTGATGCC

 2701 GCCGTGTTCC GGCTGTCAGC GCAGGGGCGC CCGGTTCTTT TTGTCAAGAC CGACCTGTCC

 2761 GGTGCCCTGA ATGAACTGCA AGACGAGGCA GCGCGGCTAT CGTGGCTGGC CACGACGGGC

 2821 GTTCCTTGCG CAGCTGTGCT CGACGTTGTC ACTGAAGCGG GAAGGGACTG GCTGCTATTG

 2881 GGCGAAGTGC CGGGGCAGGA TCTCCTGTCA TCTCACCTTG CTCCTGCCGA GAAAGTATCC

 2941 ATCATGGCTG ATGCAATGCG GCGGCTGCAT ACGCTTGATC CGGCTACCTG CCCATTCGAC

 3001 CACCAAGCGA AACATCGCAT CGAGCGAGCA CGTACTCGGA TGGAAGCCGG TCTTGTCGAT

 3061 CAGGATGATC TGGACGAAGA GCATCAGGGG CTCGCGCCAG CCGAACTGTT CGCCAGGCTC

 3121 AAGGCGAGCA TGCCCGACGG CGAGGATCTC GTCGTGACCC ATGGCGATGC CTGCTTGCCG

 3181 AATATCATGG TGGAAAATGG CCGCTTTTCT GGATTCATCG ACTGTGGCCG GCTGGGTGTG

 3241 GCGGACCGCT ATCAGGACAT AGCGTTGGCT ACCCGTGATA TTGCTGAAGA GCTTGGCGGC

 3301 GAATGGGCTG ACCGCTTCCT CGTGCTTTAC GGTATCGCCG CTCCCGATTC GCAGCGCATC

 3361 GCCTTCTATC GCCTTCTTGA CGAGTTCTTC TGAGCGGGAC TCTGGGGTTC GAAATGACCG

 3421 ACCAAGCGAC GCCCAACCTG CCATCACGAG ATTTCGATTC CACCGCCGCC TTCTATGAAA

 3481 GGTTGGGCTT CGGAATCGTT TTCCGGGACG CCGGCTGGAT GATCCTCCAG CGCGGGGATC

 3541 TCATGCTGGA GTTCTTCGCC CACCCTAGGG GGAGGCTAAC TGAAACACGG AAGGAGACAA

 3601 TACCGGAAGG AACCCGCGCT ATGACGGCAA TAAAAAGACA GAATAAAACG CACGGTGTTG

 3661 GGTCGTTTGT TCATAAACGC GGGGTTCGGT CCCAGGGCTG GCACTCTGTC GATACCCCAC

 3721 CGAGACCCCA TTGGGGCCAA TACGCCCGCG TTTCTTCCTT TTCCCCACCC CACCCCCCAA

 3781 GTTCGGGTGA AGGCCCAGGG CTCGCAGCCA ACGTCGGGGC GGCAGGCCCT GCCATAGCCT

 3841 CAGGTTACTC ATATATACTT TAGATTGATT TAAAACTTCA TTTTTAATTT AAAAGGATCT

 3901 AGGTGAAGAT CCTTTTTGAT AATCTCATGA CCAAAATCCC TTAACGTGAG TTTTCGTTCC

 3961 ACTGAGCGTC AGACCCCGTA GAAAAGATCA AAGGATCTTC TTGAGATCCT TTTTTTCTGC

 4021 GCGTAATCTG CTGCTTGCAA ACAAAAAAAC CACCGCTACC AGCGGTGGTT TGTTTGCCGG

 4081 ATCAAGAGCT ACCAACTCTT TTTCCGAAGG TAACTGGCTT CAGCAGAGCG CAGATACCAA

 4141 ATACTGTCCT TCTAGTGTAG CCGTAGTTAG GCCACCACTT CAAGAACTCT GTAGCACCGC

 4201 CTACATACCT CGCTCTGCTA ATCCTGTTAC CAGTGGCTGC TGCCAGTGGC GATAAGTCGT

 4261 GTCTTACCGG GTTGGACTCA AGACGATAGT TACCGGATAA GGCGCAGCGG TCGGGCTGAA

 4321 CGGGGGGTTC GTGCACACAG CCCAGCTTGG AGCGAACGAC CTACACCGAA CTGAGATACC

 4381 TACAGCGTGA GCTATGAGAA AGCGCCACGC TTCCCGAAGG GAGAAAGGCG GACAGGTATC

 4441 CGGTAAGCGG CAGGGTCGGA ACAGGAGAGC GCACGAGGGA GCTTCCAGGG GGAAACGCCT

 4501 GGTATCTTTA TAGTCCTGTC GGGTTTCGCC ACCTCTGACT TGAGCGTCGA TTTTTGTGAT

 4561 GCTCGTCAGG GGGGCGGAGC CTATGGAAAA ACGCCAGCAA CGCGGCCTTT TTACGGTTCC

 4621 TGGCCTTTTG CTGGCCTTTT GCTCACATGT TCTTTCCTGC GTTATCCCCT GATTCTGTGG

 4681 ATAACCGTAT TACCGCCATG CAT

//
